Electrophoresis Systems

Galileo Reflection™

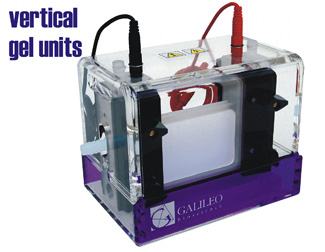

Dual-Gel Vertical Gel Units

Run either one or two gels simultaneously on these versatile vertical separation systems from High Desert Bioscience.

Bulletoverview of vertical systems -
Choose from four sizes of Galileo Refection™ twin gel vertical electrophoresis devices.


description
Mini twin Vertical
Wide twin mini vertical
Midi twin vertical
Large twin vertical
unit dimensions (cm)
17W x 14H x 12D
28W x 15H x 13D
21W x 24H x 14D
24W x 31H x 17D
gel size (cm)
10W x 10L
20W x 10L
16W x 14L
20W x 20L
buffer capacity
400ml
850ml
700ml
1300ml
acrylamide gel volume
6-15ml
15-30ml
14-27ml
25-49ml
max sample capacity/gel
15
36
24
25

max sample capacity/unit

30
72
48
50
current requirement
15-35mA per gel
15-45mA per gel
15-50mA per gel
15-75mA per gel
run time
30-60 min
30-90 min
60-120 min
60-180 min

standard features

platinum electrodes

non-slip feet

optional cooling chamber

platinum electrodes

non-slip feet

optional cooling chamber

platinum electrodes

non-slip feet

optional cooling chamber

platinum electrodes

non-slip feet

optional cooling chamber

safety features

safety cover

sheathed power leads

safety cover

sheathed power leads

safety cover

sheathed power leads

safety cover

sheathed power leads

included glass plates

4 plain 10 x 10 x 0.24cm

2 notched 10 x 10 x 0.24cm

4 plain 20 x 10 x 0.32cm

4 notched 20 x 10 x 0.32cm

4 plain 1 6x 14 x 0.32cm

4 notched 16 x 14 x 0.32cm

4 plain 10x10x024cm

2 notched 10x10x0.24cm

included combs
2 10 well @ 0.8mm

2 15 well @ 0.8mm

2 20 well @ 0.8mm

2 10 well @ 1.5mm

2 15 well @1.5mm

2 15 well @ 1.5mm

2 20well @1.5mm

included spacer
4 @ 0.8mm
8 @ 0.8mm
8 @ 1.5mm
8 @ 1.5mm
Bulletgel casting options-
These Galileo Reflection™ vertical units all feature a cast in place sytem for quick, tape-free gel casting. The gel sandwich of glass and spacers is attached to the upper buffer chamber in the normal gel run position. The upper buffer chmber is then placed on a gasketed casting base to seal the lower edges of the gel. Gels are then poured as norma, and after the gels have polymerized, the completed gels and upper buffer chamber are transferred to the lower buffer chamber for running.
Bulletvertical systems -
1010 twin-gel vertical system
2010 extra-wide, twin-gel vertical system
1614 large format, twin-gel vertical system
2020 large format, twin-gel vertical system
Bulletsystem accessories -
casting bases - included with all units, extra bases available
glass plates
Bulletvertical gel systems user manual -
vertical gel systems user manual (PDF Format)
Bulletother supplies -
buffers
tank style transfer devices
semi-dry transfer devices
